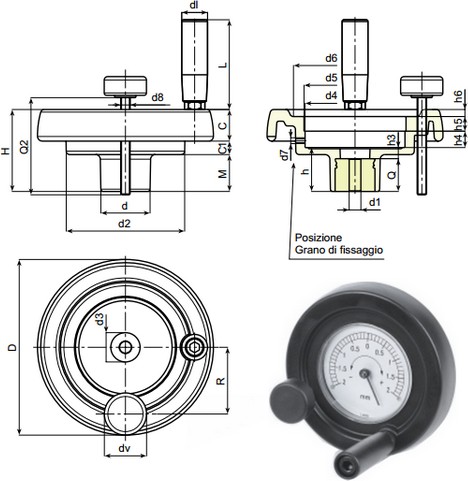

Solid control handwheel for built-in position indicator with and locking handwheel
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Zinc plated steel
(*) SIKO position indicator S50/1 can be mounted with adapter KS80-50
(+) SIKO position indicator S80/1 can be mounted with adapter KS120-80
| številka naročila | D | H | d | d2 | M | C | C1 | d3 | d4 | R | d5 | d6 | d8 | d7 | h | h3 | h4 | h5 | h6 | d1 H7 | dm | Q | dl | L | Weight (g) | Cena za kos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K903-130 T80 D5.8 | 129 | 64,5 | 42 | 100 | 27,5 | 23 | 14 | 29 | 85,5 | 54 | 87(S80/1)* | 90 | M8 | M6 | 34 | 10 | 13,5 | 12,5 | 5 | 6,8 H9 | 20 | 24 | 21 | 65 | 426 | 13 EUR |
| K903-130 T80 D12 | 129 | 64,5 | 42 | 100 | 27,5 | 23 | 14 | 29 | 85,5 | 54 | 87(S80/1)* | 90 | M8 | M6 | 34 | 10 | 13,5 | 12,5 | 5 | 12 | 20 | 24 | 21 | 65 | 424 | 13 EUR |
| K903-150 T80 D6.8 | 149 | 69 | 42 | 101 | 31 | 25,5 | 12,5 | 29 | 85,5 | 57 | 87(S80/1)* | 106 | M8 | M6 | 37 | 9 | 13,5 | 12,5 | 6,5 | 6,8 H9 | 20 | 28 | 23 | 76 | 555 | 15 EUR |
| K903-150 T80 D14 | 149 | 69 | 42 | 101 | 31 | 25,5 | 12,5 | 29 | 85,5 | 57 | 87(S80/1)* | 106 | M8 | M6 | 37 | 9 | 13,5 | 12,5 | 6,5 | 14 | 20 | 28 | 23 | 76 | 550 | 15 EUR |
| K903-175 T80 D6.8 | 175 | 72 | 40 | 115 | 28,5 | 32 | 11,5 | 25 | 85,5 | 60 | 87(S80/1)* | 126,5 | M8 | M6 | 38 | 10 | 12,5 | 14 | 8 | 6,8 H9 | 20 | 28 | 25 | 86 | 782 | 18 EUR |
| K903-175 T80 D16 | 175 | 72 | 40 | 115 | 28,5 | 32 | 11,5 | 25 | 85,5 | 60 | 87(S80/1)* | 126,5 | M8 | M6 | 38 | 10 | 12,5 | 14 | 8 | 16 | 20 | 28 | 25 | 86 | 777 | 18 EUR |
| K903-200 T120 D6.8 | 199 | 71 | 46 | 137 | 24 | 32 | 15 | 29 | 124 | 74 | 125,5(S120/1)+ | 144 | M8 | M6 | 34 | 11 | 13,5 | 12,5 | 10 | 6,8 H9 | 22 | 23 | 25 | 86 | 950 | 22 EUR |
| K903-200 T120 D20 | 199 | 71 | 46 | 137 | 24 | 32 | 15 | 29 | 124 | 74 | 125,5(S120/1)+ | 144 | M8 | M6 | 34 | 11 | 13,5 | 12,5 | 10 | 20 | 22 | 23 | 25 | 86 | 943 | 22 EUR |
Cene so brez DDV, nanašajo pa se na plačilo po povzetju. Če je navedena številka za naročanje, prosimo, da jo napišete ob izbrani vrsti blaga. Cena prevoza od 7,5 EUR.
